Good quality JDW270F phillips header punch
Good quality JDW270F phillips header punch
Product describe

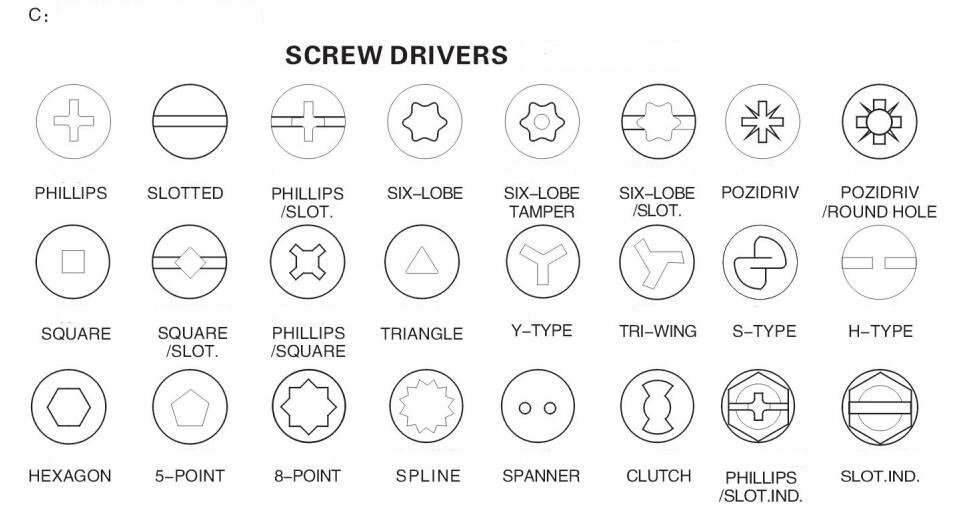

One of the screw-formed tools, screw header punch also named second punch.It's major used to finish the head and recess shape of screw (ie. Phillips, Pozi, Hexagon, Square and Six-lobe recess).

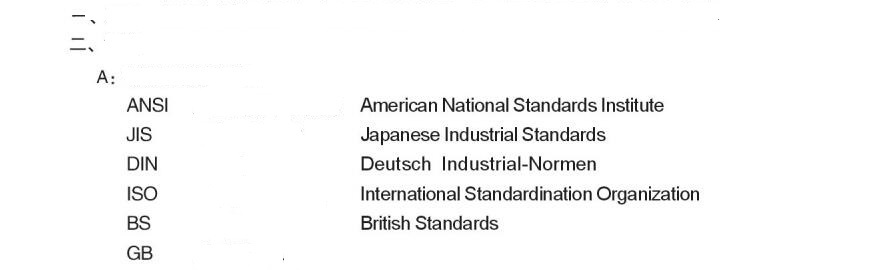

Standard norm
Specification Parameter

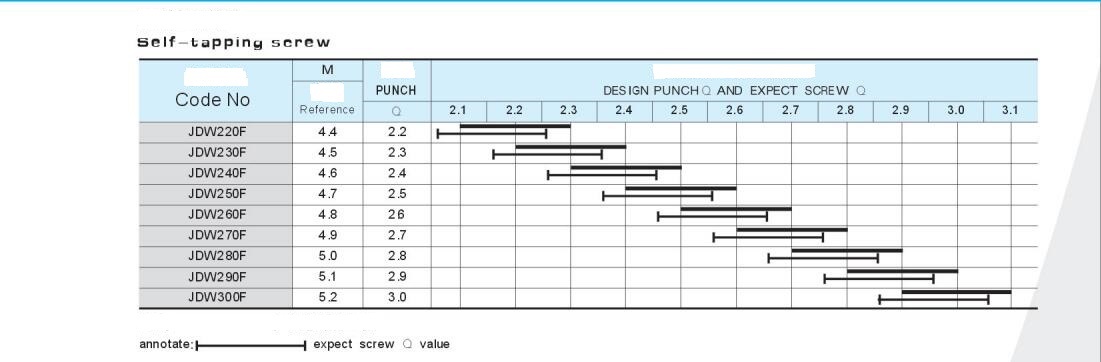

JDW270F second header punch, it is major used to finish the bugle
head and phillips driver of drywall screw. JDW270F second header
punch is for JIS standard bugle head drywall screw .
Heat treatment
The hardness is 62.5-63.5degree, we use vacuum heat treatment furnace to heat treatment.
Coating type
Without coating
With TIN coating
With TILAN coating
Standard specification
12x25mm , 25g/piece
14x25mm , 30g/piece
18x25mm , 50g/piece
23x25mm , 80g/piece
Package and shipment
Ten pcs in one small box, then be packed by a carton .
Carton size: 29x20x17cm
Shipment way: by international express service,by air transfer and by sea.
Aftersales service
Pls open it and check all the items ASAS when you receive the goods,
if there is any damage or mistake, tell me pls , we will exchange or replace
for you within two weeks.
phillips header punch is one of the main products of RENQIU HUACHAO SCREW TOOLS CO., LTD. with good price and quality,Factory direct sales Cheapest.Our company is a professional supplier(s) china and manufacturers China,with various Low price products For sale.
